How to Repair Plywood Subfloor



Repairing Plywood Subfloor is Easy to Do and Requires Just a Few Basic Tools



Mark J. Donovan

An OSB or plywood subfloor can quickly become damaged if it becomes exposed to water. Water can easily cause a plywood subfloor to rot, warp or become punky. In addition, a damaged plywood subfloor can begin to squeak and buckle the finished flooring. Fortunately the effort and tools required to repair plywood subfloors is easy to do, albeit you will first need to lift up the finished flooring material.



Tools Required for Plywood Subfloor Repair


To repair a plywood subfloor you will need a skill saw, chalk/pencil, square, tape measure, safety glasses, pry bar, hammer, screw gun, caulking gun, and a ¾” drill bit.


Removing Damaged Plywood Subfloor Areas


First lift up the finished flooring material and locate the damaged OSB or plywood subfloor areas. Make a large X over them with a piece of chalk or pencil.

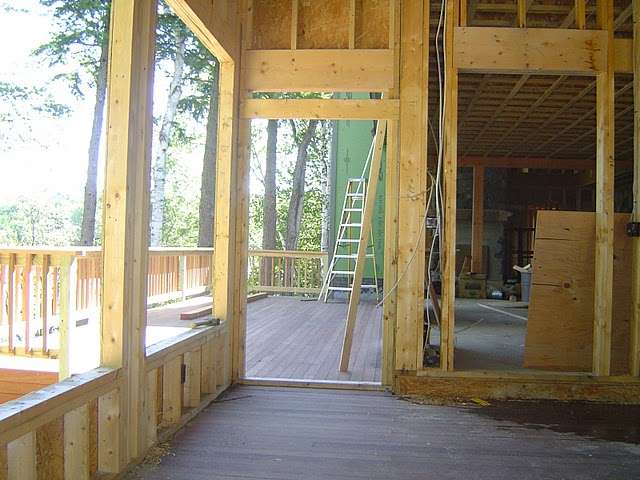

A subfloor can become damaged if exposed to the elements for too long during construction.

Photo By Mark Donovan



Next, determine where the floor joists are and use your chalk or pencil and the square to mark out square sections that encompass the damaged plywood subfloor areas. Make sure your marks that are parallel to floor joists line up directly over the centerline of floor joists.

Use the pry bar and hammer to remove nails in the damaged plywood subfloor areas.

Next, use a screw gun with a ¾” bit to drill a test hole into the subfloor, over one of the damaged areas, to determine the thickness of the subfloor.


After determining the thickness of the subfloor set the skill saw blade height to the measured thickness.

Use your circular skill saw to cut out the damaged plywood subfloor pieces as marked.



Replacing Damaged Plywood Subfloor Areas


To complete the OSB or plywood subfloor repair, visit your local home improvement center and pick up the necessary sheets of 4’x8’ pieces of plywood or OSB. In addition, pick up some 1-1/2” or 1-5/8” coarse threaded drywall screws and an adhesive such as Liquid Nails.



Find a Qualified Hardwood Flooring Contractor in Your Area

Get Free Quotes.  Easy, Quick and No Obligations!



For the home improvement or home remodeling project that is too big for you, check out our partner NeedContractor. They are a national resource for finding pre-screened, insured, and licensed home improvement and remodeling contractors in your local area.

Find Local, Pre-Screened Home Plumbing Contractor



Get Matched in 48 hours with Hardwood Flooring Contractors!



Cut the new OSB or plywood sheets to the appropriate dimensions of the wholes you cut out in the subfloor.

Apply a thick bead of adhesive over each exposed floor joist and then lay the cut pieces of new plywood subfloor material over the cut out openings.

Use the drywall screws and a screw gun to secure the new plywood pieces to the repaired subfloor. Make sure the drywall screws screw into the floor joists for proper fastening.

After completing the plywood subfloor repair you can then reinstall the finished floor material.



For more help on new home construction, see HomeAdditionPlus.com’s Home Construction Contractor Bid Sheets. Home Construction Contractor Bid Sheets will help ensure that you find and hire the right home building contractor for your next home improvement, remodeling, or building project. In addition, they will help to ensure that your home improvement project is completed on time and on budget.
